Jing
AI Enabled Landslide Monitoring Device
Real-time inclination and soil moisture sensoring
High resolution and stability

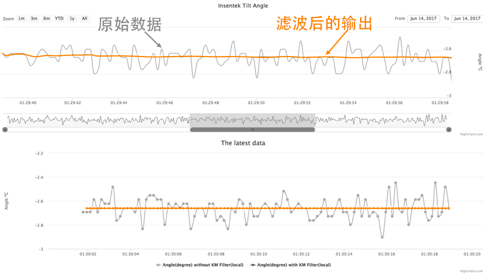

one thousandth of a degree，enhanced by a specially designed Kalman filter
Multiple sensoring
The first multi-sensor device in the world integrating inclination and soil moisture sensoring
AI machine learing
Based on the senor data, Jing users can build their own data set, training set to set up a prediction model
For the first time , one device can measure the causes and the consequences
Moisture at different depths
Temperature
at different
depths
Real-time
inclination
sensoring
Rainfall
penetration
in the soil
Jing : More than a hardware
Open data API
We provide a large amount of historical and real-time meteorological data for building a comprehensive data base for the safety assessment or early warning modeling
Specification
Soil moisture
Range：dry to satuated soil Precision：±4% on site
Soil temperature
Range：-20℃~60℃
Precision：±0.5℃
Inclination
Range：-30~30°
Resolution：1‰ degree
Precision：5‰ degree
Operation environment
Temperature：-20℃~60℃
Huimidity：100%RH (No condensation)
Power supply
Lithium iron phosphate battery
Solar Panel
MTBF
More than 25000h
More than 30 monitoring stations in China
