Measuring soil moisture and temperature at different depths
Machine learning of these data to capture the true need of crops
Irrigation
Irrigation base on the crop’s real need but not the planification
No primary calibration
We use machine learing and the Kalman filter to better understand the data
Research
Analysis of the plant roots’ activity

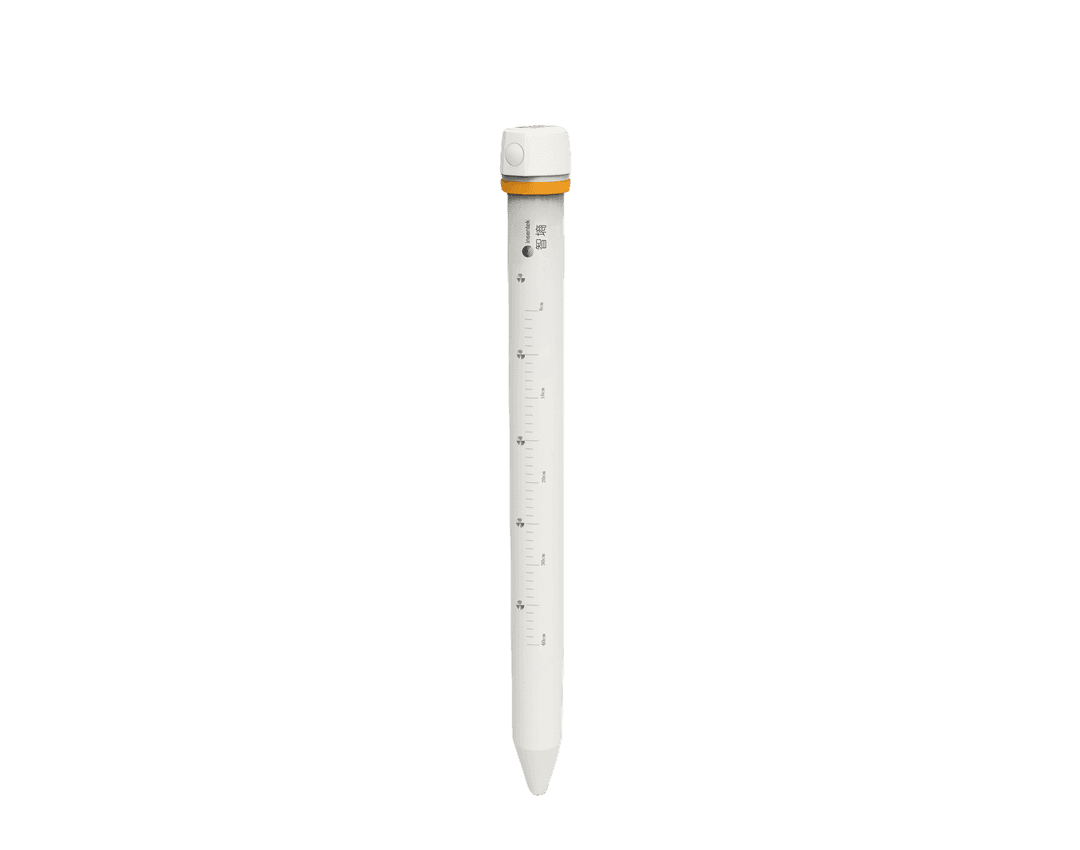

Soil moisture and temperature
Precision:Insentek’s high definition FD water moisture probe
Large range:upto 2 meters depth, one probe per 10 cm
32bit ARM CPU : capture interval configurable from 5 mins to 4 hours
Reliability:MTBF more than 25000h, Nitrogen blanketing
32 bit ARM CPU
10 cm per depth
5 min interval
FD sensors

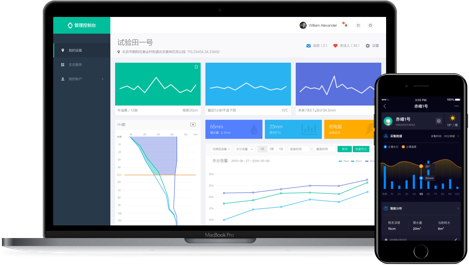

A real-time visualisation
From smartphone or our website,visualize the data: soil water content capacitance, soil moisture, water content potentiel, daily ET, Kc and root depth analysis.
Soil moisture and temperature
Precision:Insentek’s high definition FD water moisture probe
Large range:upto 2 meters depth, one probe per 10 cm
32bit ARM CPU : capture interval configurable from 5 mins to 4 hours
Reliability:MTBF more than 25000h, Nitrogen blanketing
32 bit ARM CPU
10 cm per depth
5 min interval
FD sensors
A real-time visualisation
From smartphone or our website,visualize the data: soil water content capacitance, soil moisture, water content potential, daily ET, Kc and root depth analysis.

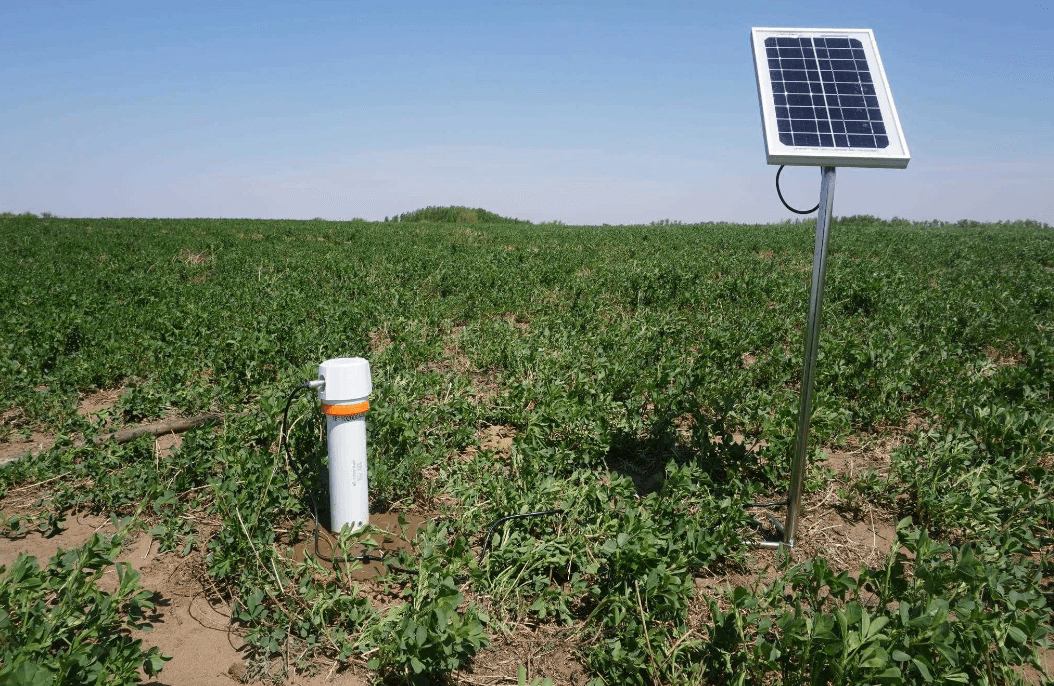

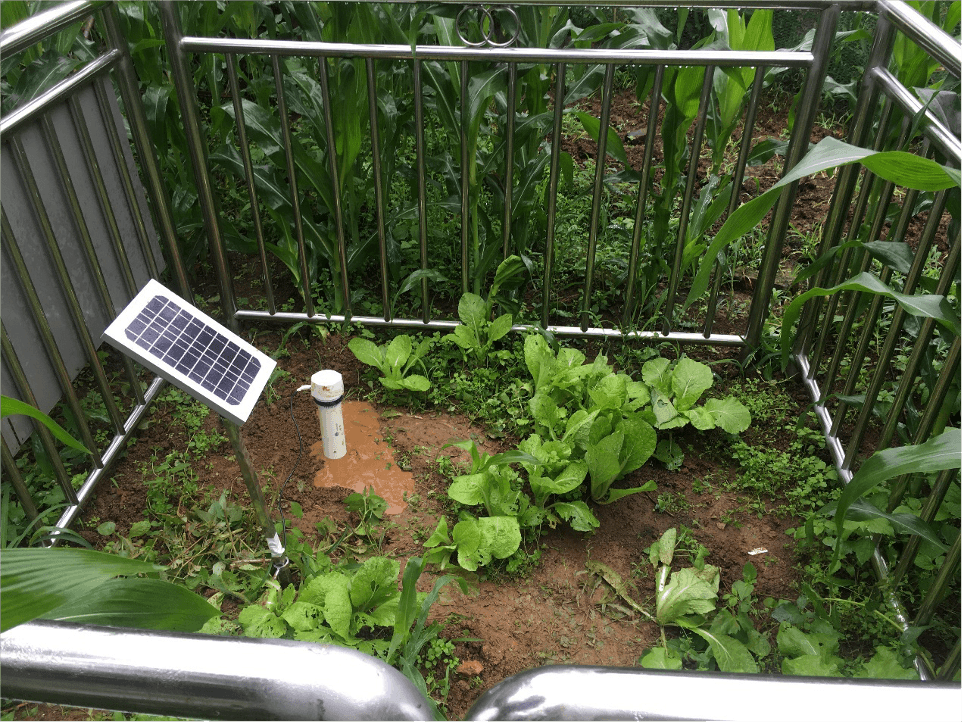

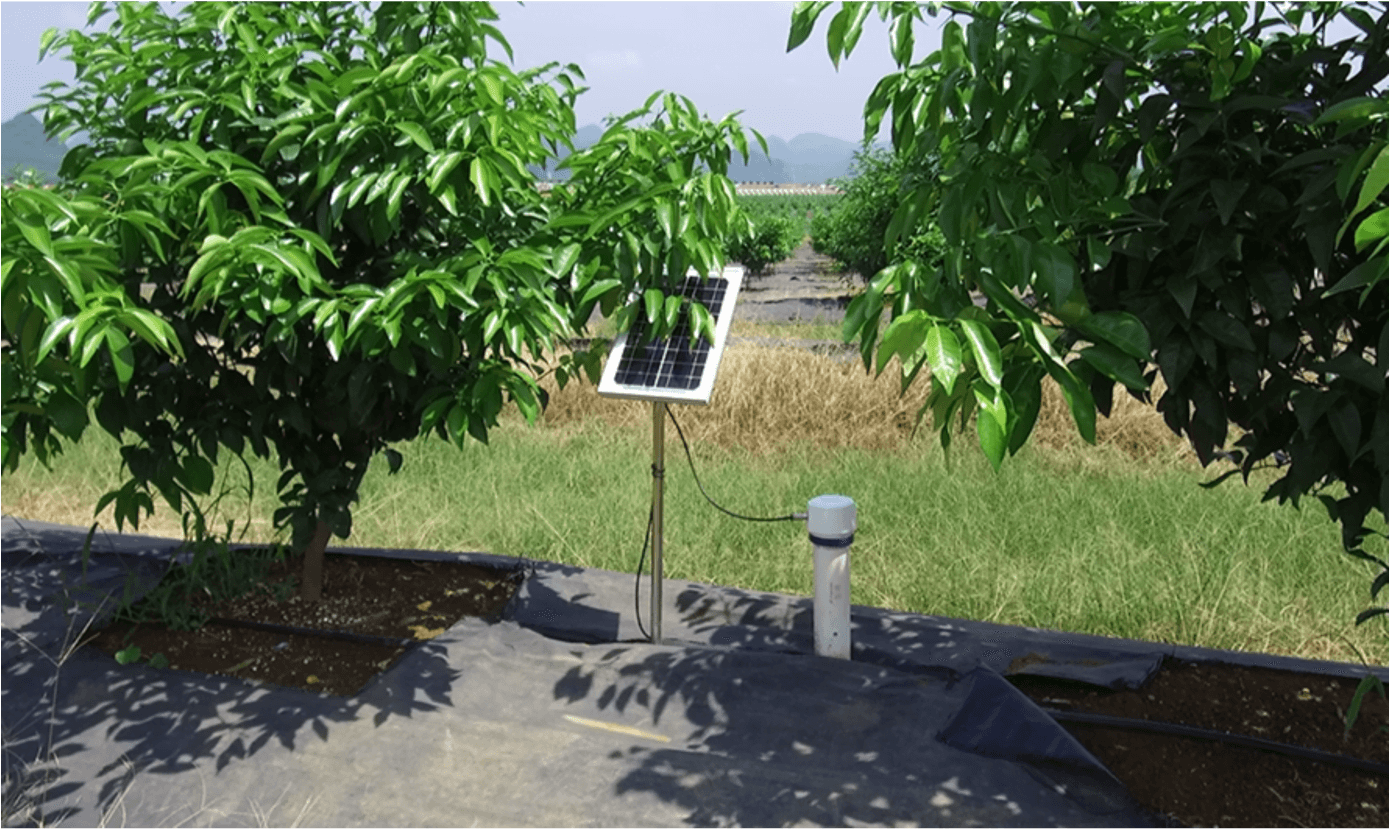

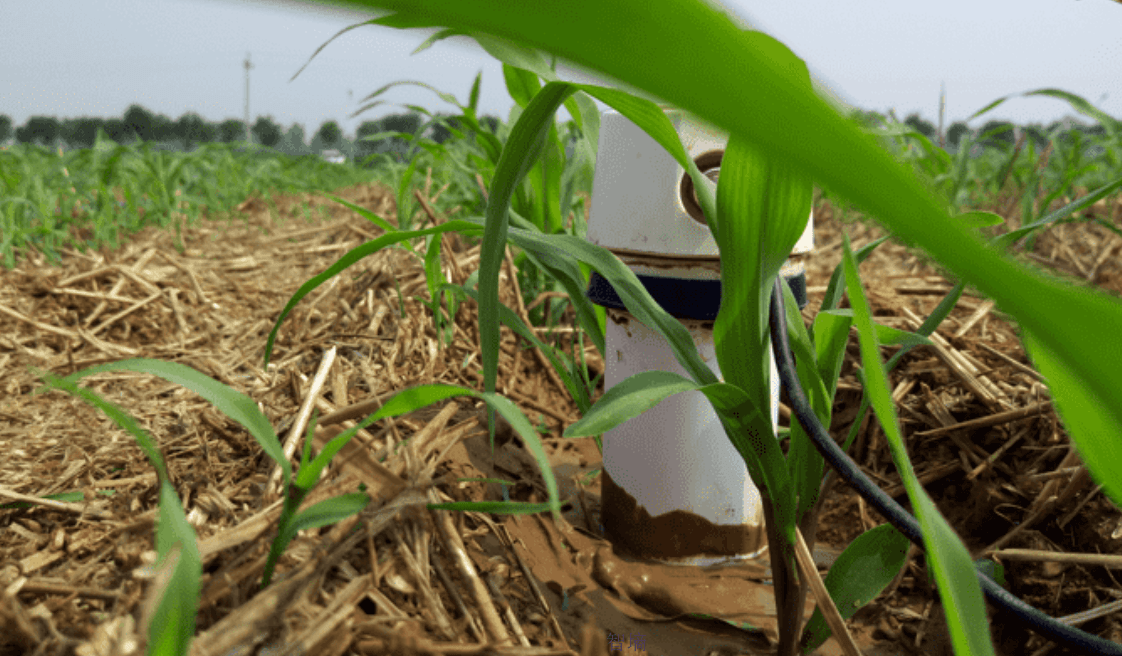

Easy installation and maintenance
Installation less than 15 minutes, GPS with antitheft alerting
remote software upgrade for maintenance
Specifications
Moisture
Range:dry to satuated soil
Precision:±2% (lab)
±4%(on site)
Temperature
Range:-20℃~60℃
Precision:±0.5℃
Dimension
Length:620-1400mm
Width:92mm
Diameter:32mm or 63mm
Operation environment
Temperature:-20℃~60℃
Humidity:100%RH
Communication
4G/3G/GPRS
MTBF
more than 25000h
Operation Voltage
3.2V
Supply:9V
Power supply
Lithium iron phosphate battery
Solar Panel
More than 7000 Shang deployed.
They are now changing the way of irrigation in China.
